    Surgic Pro Series

    IMPECCABLE ACCURACY

    Shorter, lighter and more powerful
    Consistently excellent performance

    Technology & Function

    Shorter & Lighter

    Shorter & Lighter

    This new surgical micromotor is 16.2mm shorter and weighs 42g less compared to the conventional optic surgical micromotor.

    LED

    LED

    LED illumination helps the clinicians to focus more easily on the treatment area and contributes to precise surgery

    Clearer : LEDs generate natural daylight quality light which gives clearer vision when compared to halogen light.

    Durable : LED light sources are longer lasting and more durable than halogen bulbs.

    Advanced Handpiece Calibration

    Advanced Handpiece Calibration

    Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.

    USB Memory & Data USB Memory & Data

    USB Memory & Data USB Memory & Data

    Treatment data can be accessed and downloaded using a USB memory stick.
    You do not need to install any specific software as the data can be displayed with general-use software which can display csv or bitmap files.
    *memory stick isn't included.
    *only SurgicPro+

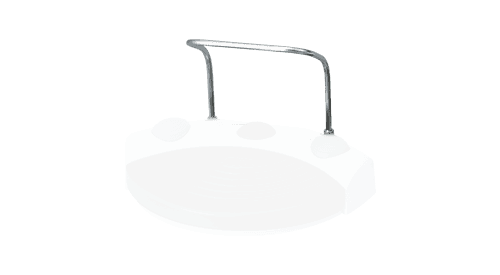

    Foot Control

    Foot Control

    The Foot Control is user friendly and allows operation of all functions within the preset parameters without touching the control panel to avoid accidental activation of the micromotor outside the preset limits. The Surgic Pro/Surgic Pro+ is certificated according to IPX8.

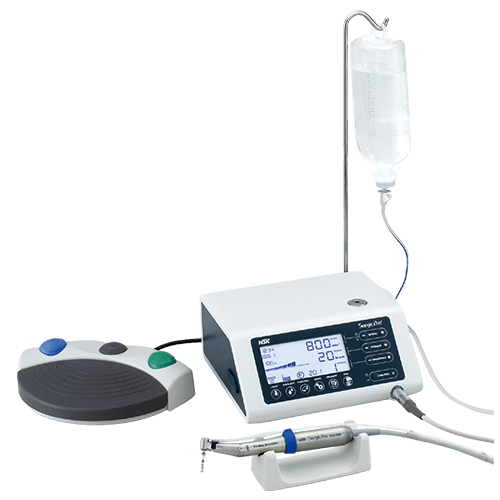

    Surgic Pro+

    Optic
    Model:Surgic Pro+ OPT-D (230V)
    Order Code:Y1003585

    Specifications

    Power Supply
    AC 230 V 50/60 Hz
    Max. Pump Output
    75 mL / min
    Programs
    8 Programs / Implant Systems
    Dimensions
    W 268 x D 220 x H 100 mm
    USB I/F
    1 Port
    Built in Memory
    100 min
    Torque
    5-80 Ncm
    Motor Speed
    200-40,000 min-1
    Light Power (LED Micromotor)
    Over 32,000 LUX
    Foot Control Functions
    Program Button, Speed Control Pedal, Coolant Solution Flow Volume Button, Forward / Reverse Button

    Content

    Control Unit with Data Storage Facility / SGL70M LED Micromotor / FC-78 Foot Control / X-DSG20L Optic Handpiece (20:1 Reduction) / Irrigation Tube (5 pcs) and Other Accessories

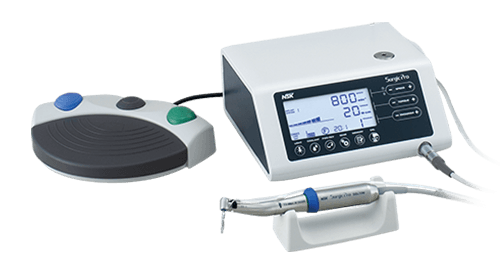

    Surgic Pro

    Optic
    Model:Surgic Pro OPT (230 V)
    Order Code:Y1003586

    Contents

    Control Unit without Data Storage Facility / SGL70M LED Micromotor / FC-78 Foot Control / X-SG20L Optic Handpiece (20:1 Reduction) / Irrigation Tube (5 pcs.) and Other Accessories
    Non-Optic
    Model:Surgic Pro NON-OPT (230 V)
    Order Code:Y1003587

    Contents

    Control Unit without Data Storage Facility / SG70M Non-Optic Micromotor / FC-78 Foot Control / SG20 Handpiece (20:1 Reduction) / Irrigation Tube (5 pcs.) and Other Accessories

    Specifications

    Power Supply
    AC 230 V 50/60 Hz
    Max. Pump Output
    75 mL / min
    Programs
    8 Programs / Implant Systems
    Dimensions
    W 265 x D 220 x H 100 mm
    Torque
    5-80 Ncm
    Motor Speed
    200-40,000 min-1
    Light Power (LED Micromotor)
    Over 32,000 LUX
    Foot Control Functions
    Program Button, Speed Control Pedal, Coolant Solution Flow Volume Button, Forward / Reverse Button

    Option & Accessories

    Handle Set

    Model:Handle Set
    Order Code:Z1027001

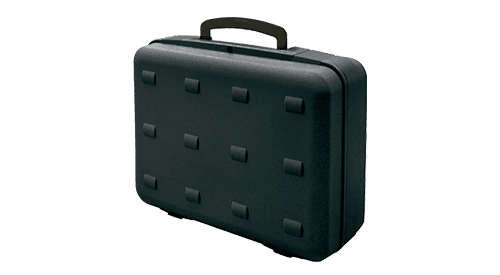

    Carrying Case(Surgic Pro)

    Model:Carrying Case (Surgic Pro)
    Order Code:Y1001952

    Specifications

    Dimensions
    W 534 x D 427 x H 207 mm

    Downloads

    Brochures
