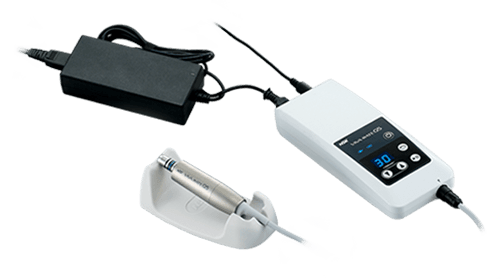

    VIVAMATE G5

    Portable LED Micromotor; from Denture Adjustment to General Applications

    As the latest member of pioneer portable micromotor for mobile dentistry, VIVAMATE series, VIVAMATE G5 provides various functions to meet doctors' mobile dentistry needs. Used with the irrigation and saliva ejection system, Viva-Support, the LED micromotor with internal spray system enables easy and certain teeth cutting and decay removal. In addition, the newly developed control unit with innovative design promises high portability and operability by being both AC and battery power system.

    Control Panel Offers Simple and Intuitive Operation
    Easy to see necessary information, such as rotation speed setting, power on/off and battery remaining levels. The control panel that allows intuitive operation greatlyreduces stress to operate the instrument.

    Able to Use Both Rechargeable Battery and AC Adaptor for the Compact Control Unit
    Able to operate with rechargeable batteries anywhere. When battery power level is low, just plug in AC adapter into outlet; bring the unit to patient visits without worry. It is very easy to carry since the control unit is palm-size (W 72 x D 180 x H 36 mm) and weighs only 370 g.

    Technology & Function

    Internal Spray LED Micromotor

    Internal Spray LED Micromotor

    • Internal Spray LED Micromotor

      The compact size micromotor has been specifically developed for mobile dentistry and weighs only 148 g (w/cord) and features internal spray and LED light.

    Carrying Case

    Carrying Case

    Comes with a carrying case designed for storing VIVAMATE G5 unit and its attachments.

    Foot Control (Optional)

    Foot Control (Optional)

    Conveniently adjust the motor speed by depressing the pedal of the foot control without taking your eyes of the treatment.

    VIVAMATE G5

    Optic
    Model:VIVAMATE G5 230 V SET
    Order Code:Y1002801

    Control Unit

    Dimensions
    W 72 x D 180 x H 36 mm
    Weight
    370 g
    Battery Recharge Time
    Appx. 2 Hours*
    Battery Contentious Drive Time
    Appx. 1 Hour*
    * varies depending on usage situations

    Micromotor

    Dimensions
    Ø22 x L 68.6 mm
    Weight
    148 g (Include Motor Cord)
    Speed
    3,000-30,000 min-1
    Torque
    3 Ncm (30,000 min-1 While Rotating)

    Content

    Control Unit / Handpiece Stand / Motor (Including Motor Cord) / AC Adaptor / AC Cord / Carrying Case
