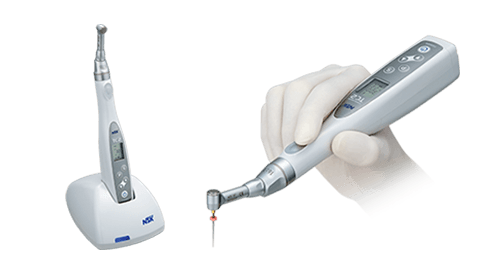

    ENDO-MATE TC2

    Smarter and Safer

    Cordless Endodontic Handpiece with Torque Control and Auto Reverse

    Technology & Function

    Mini Head & Slim Neck

    Mini Head & Slim Neck

    Slim head and neck assures higher visibility.

    Alarm Sound of Two

    Alarm Sound of Two

    Two kinds of alarm sound for safer and efficient treatment (For ENDO-MATE TC2).

    Program Function

    Program Function

    • User definable 5 presets – Speed, Torque,Gear Ratio & Auto Reverse mode
    • Last program settings can be memorized when the power turns on

    Ni-Ti Files

    Ni-Ti Files

    • Suitable for use with most major brands of Ni-Ti files
      Selecting gear ratio attachment applies the entire rotation and torque.


    LCD Panel

    LCD Panel

    Large LCD panel and access-friendly key

    MPA / MPAS

    MPA / MPAS

    MPA and MPAS heads are equipped with built in probe ring which enable to use your Apex locator with the ENDO-MATE TC2 system. By combining an Apex Locator with NSK ENDO-MATE TC2, clinicians will be able to perform more accurate root canal preparations. All contra angle heads are autoclavable up to 135°C.

    Fast Charger

    Fast Charger

    90min. quick charge with non-contact type charger

    Heads

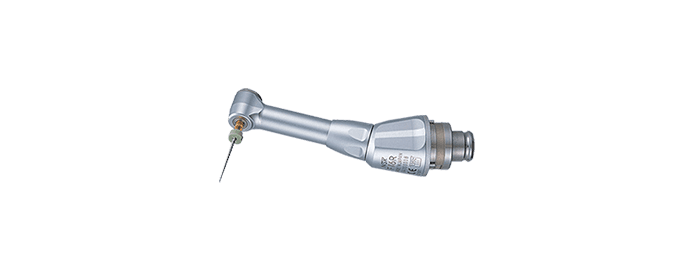

    MP-F20R / MP-F16R

    MP-F20R / MP-F16R
    Model:MP-F20R
    Order Code:Y110044
    Model:MP-F16R
    Order Code:Y110096

    Specifications

    Head
    Miniature Head
    For
    Ni-Ti Files (Ø2.35)
    Gear Ratio
    20:1 / 16:1 Reduction

    Features

    Push Button Chuck

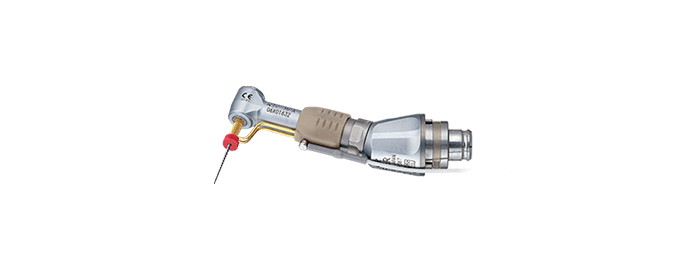

    MPA-F16R

    MPA-F16R
    Model:MPA-F16R
    Order Code:Y110097

    Specifications

    Head
    Miniature Head
    For
    Ni-Ti Files (Ø2.35) / Connection for Apex Locator (for Long Shank)
    Gear Ratio
    16:1 Reduction

    Features

    Push Button Chuck

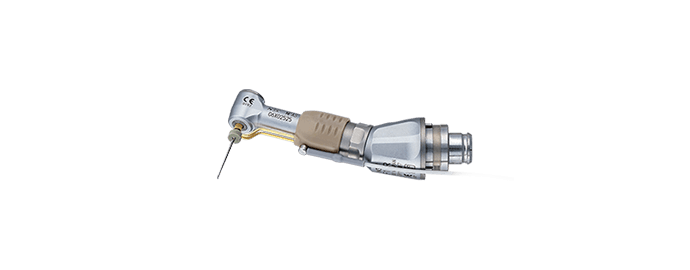

    MPAS-F20R / MPAS-F16R

    MPAS-F20R / MPAS-F16R
    Model:MPAS-F20R
    Order Code:Y110046
    Model:MPAS-F16R
    Order Code:Y110098

    Specifications

    Head
    Miniature Head
    For
    Ni-Ti Files (Ø2.35) / Connection for Apex Locator (for Short Shank)
    Gear Ratio
    20:1 / 16:1 Reduction

    Features

    Push Button Chuck

    ENDO-MATE TC2

    Model:ENDO-MATE TC2 (230 V)
    Order Code:Y1001027
    Model:ENDO-MATE TC2 MPA (230 V)
    Order Code:Y1001028

    Contents - ENDO-MATE TC2

    MP-F16R Head / ENDO-MATE TC2 Motor / Battery Charger

    Contents - ENDO-MATE TC2 MPA

    MPA-F16R Head / ENDO-MATE TC2 Motor / Battery Charger

    Downloads

    Brochures
