    ENDO-MATE DT2

    ENDO-MATE DT2 has been developed for use with most major brands of Ni-Ti files.
    The preprogramming function allows highly efficient treatments using different file manufacturer's protocols.
    The control unit has been designed to be lightweight and compact.
    It is fitted with a rechargeable battery providing high mobility. The lightweight and slim handpiece allows easy and comfortable handling for high performance.

    Technology & Function

    2 way power source

    2 way power source

    ENDO-MATE DT2 has been designed to work with a rechargeable battery for portable use or can be powered using the AC adaptor supplied.

    Push type ultra miniature head

    Push type ultra miniature head

    Allows fast and easy exchange of files during procedures. Compact head offers excellent visibility of treatment spots.

    Compatible all popular brands of Ni-Ti files

    Compatible all popular brands of Ni-Ti files

    Compatible all popular brands of Ni-Ti files.
    Up to 9 settings (speed and torque etc) can be programmed simply by pushing the memory function button. It's easy to switch between each preset program allowing work with all popular Ni-Ti file manufacturer's protocols.

    6 head angles for ease of treatment

    6 head angles for ease of treatment

    Depending on the position of treatment site, the head angle can be adjusted to the best angle.

    Quick coupling

    Quick coupling

    Quick coupling allows for easy head exchange.
    All heads are autoclavable up to 135˚C.

    2-way ON/OFF switch

    2-way ON/OFF switch

    Features are :
    A: Push and release
    - Micromotor operates continuously until the button is pushed again.
    B: Push and hold
    - Micromotor operates continuously until the buton is released.

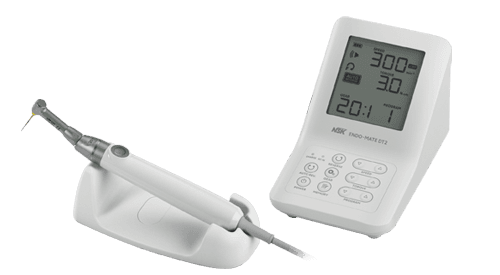

    ENDO-MATE DT2

    ENDO-MATE DT2 with 20:1 Head

    Model:ENDO-MATE DT2 (230V)
    Order Code:Y1004230

    Contents

    Control unit / Motor and cord / MP-F20R head (20:1) / Handpiece stand / AC adaptor

    ENDO-MATE DT2 without Head

    Model:ENDO-MATE DT2 W/O (230V)
    Order Code:Y1004231

    Contents

    Control unit / Motor and cord / Handpiece stand / AC adaptor

    Specifications

    Power Supply
    230V 50/60 Hz and Battery pack
    Number of Programs
    9
    Max Torque
    7 Ncm (when using 20:1 head)
    Speed range
    100-13,000 min-1(With 20:1, 1:1 geared heads)
    Charge/Continuous use
    5 h / 2 h (depending on workload)
    Dimensions
    W 93 x D 147 x H 100 (mm)
    Weight
    Unit 440 g / Motor handpiece and Cord 95 g

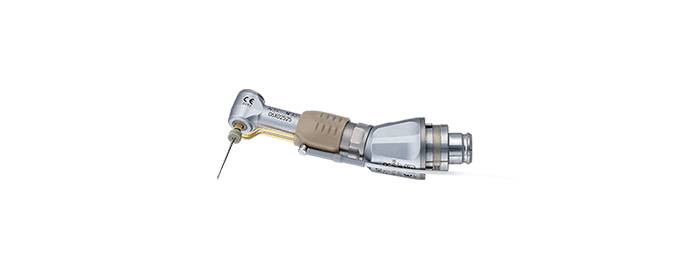

    Heads

    MP-F20R / MP-F16R

    MP-F20R / MP-F16R
    Model:MP-F20R
    Order Code:Y110044
    Model:MP-F16R
    Order Code:Y110096

    Specifications

    Head
    Miniature Head
    For
    Ni-Ti Files (Ø2.35) / 360° Rotation
    Gear Ratio
    20:1 / 16:1 Reduction

    Features

    Push Button Chuck

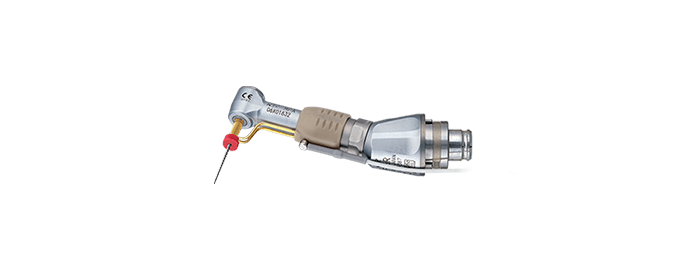

    MPA-F16R

    MPA-F16R
    Model:MPA-F16R
    Order Code:Y110097

    Specifications

    Head
    Miniature Head
    For
    Ni-Ti Files (Ø2.35) / 360° Rotation / Connection for Apex Locator (for Long Shank)
    Gear Ratio
    16:1 Reduction

    Features

    Push Button Chuck

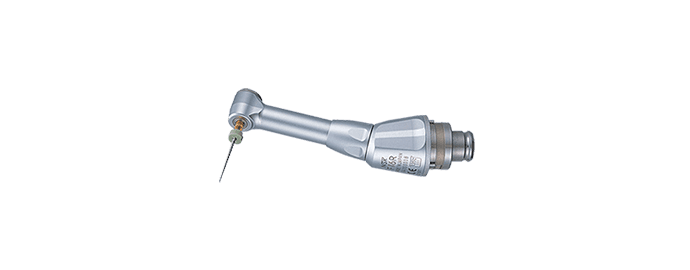

    MPAS-F20R / MPAS-F16R

    MPAS-F20R / MPAS-F16R
    Model:MPAS-F20R
    Order Code:Y110046
    Model:MPAS-F16R
    Order Code:Y110098

    Specifications

    Head
    Miniature Head
    For
    Ni-Ti Files (Ø2.35) / 360° Rotation / Connection for Apex Locator (for Short Shank)
    Gear Ratio
    20:1 / 16:1 Reduction

    Features

    Push Button Chuck

    Downloads

    Brochures
