    ULTIMATE XL Series

    Powerful and Comfortable

    Experience Unprecedented Smoothness and Power
    The world's leading laboratory micromotor just got better. The Ultimate range has evolved to run even smoother and be more powerful. With 180° vector control system, it assures you to work more efficiently and stress-free. The handpiece shape has been designed extremely carefully with ergonomy and functionality always being at the forefront of the designer's mind. The result is a handpiece which considerably reduces hand fatigue and makes it easier to work on even the most delicate pieces of work for extended periods of time. Experience the next-generation performance the Ultimate XL has to offer.

    Technology & Function

    180° Vector Motor Control

    180° Vector Motor Control

    - Ripple-free smooth rotation with 180˚ vector control system
    - Powerful and stable torque across the entire speed range
    Low Noise, Low Vibration

    Low Noise, Low Vibration

    - Minimal vibration, and noise from hermetically shielded micromotor unit
    - Approximately 30% increased chuck strength enables you to work on a wider variety of materials
    Compact and Lightweight

    Compact and Lightweight

    Ligthweight compact body reduces hand fatigue and improves balance
    High Fit

    High Fit

    Easy-to-hold handpiece design ensures precision
    Digital Display

    Digital Display

    Digital Speed Display
    Turbine Adapter

    Turbine Adapter

    TA50 air turbine adaptor allows you to quickly switch power source between air turbine handpiece and electric micromotor. Both handpieces are equally controllable with a single foot control or knee control.

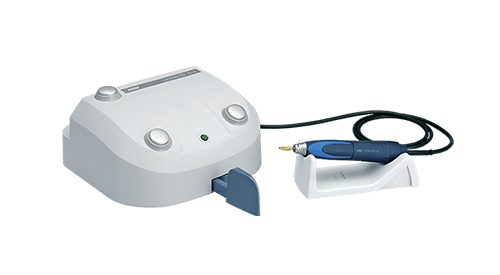

    ULTIMATE XL

    ULTIMATE XL

    Torque

    Model:UMXL-GT (230 V)
    Order Code:Y141471

    Compact

    Model:UMXL-GC (230 V)
    Order Code:Y141472

    Specifications

    Power Supply
    AC 230 V 50/60 Hz
    Weight
    2.8 kg
    Dimensions
    W 167 x D 247 x H 77 mm
    Max. torque
    8.7 Ncm (Torque) / 6.0 Ncm (Compact)

    Contents

    Control Unit / Micromotor Handpiece / Foot Control / Handpiece Stand

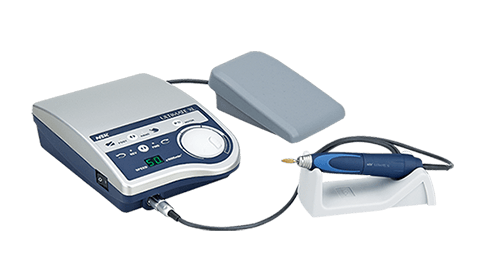

    ULTIMATE XL-D

    ULTIMATE XL-D

    Torque

    Model:UMXL-DT (230V)
    Order Code:Y141504

    Compact

    Model:UMXL-DC (230V)
    Order Code:Y141505

    Specifications

    Power Supply
    AC 230 V 50/60 Hz
    Weight
    3.3 kg
    Dimensions
    W 81 x D 270 x H 230 mm
    Max. torque
    8.7 Ncm (Torque) / 6.0 Ncm (Compact)

    Contents

    Control Unit / Micromotor Handpiece / Foot Control / Handpiece Stand

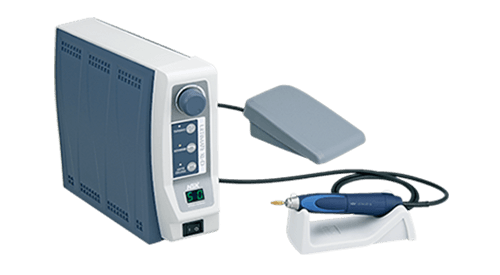

    ULTIMATE XL-K

    ULTIMATE XL-K

    Torque

    Model:UMXL-KT (230V)
    Order Code:Y141495

    Compact

    Model:UMXL-KC (230V)
    Order Code:Y141496

    Specifications

    Power Supply
    AC 230V 50/60 Hz
    Weight
    3.2 kg
    Dimensions
    W 90 x D 270 x H 230 mm
    Max. torque
    8.7 Ncm (Torque) / 6.0 Ncm (Compact)

    Contents

    Control Unit / Micromotor Handpiece / Handpiece Stand

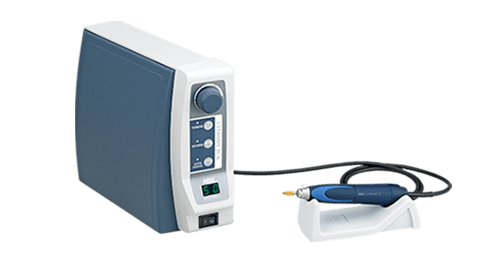

    ULTIMATE XL-F

    ULTIMATE XL-F

    Torque

    Model:UMXL-FT (230V)
    Order Code:Y141513

    Compact

    Model:UMXL-FC (230V)
    Order Code:Y141514

    Specifications

    Power Supply
    AC 230V 50/60 Hz
    Weight
    3.8 kg
    Dimensions
    W 230 x D 292 x H 113 mm
    Max. torque
    8.7 Ncm (Torque) / 6.0 Ncm (Compact)

    Contents

    Control Unit / Micromotor Handpiece / Handpiece Stand
