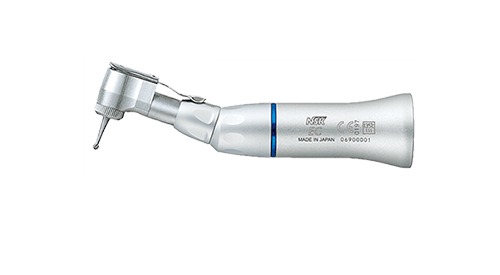

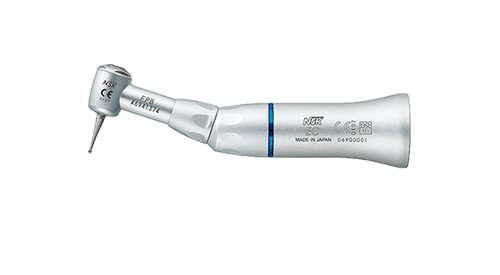

General Applications
FPB-EC1:1
Non-Optic
Model:FPB-EC
Order Code:Y110158
Specifications
Gear Ratio
1:1 Direct Drive
For
CA Burs (Ø2.35)
Max Speed
40,000 min-1
Features
Clean Head System / Push Button Chuck / Ball Bearing

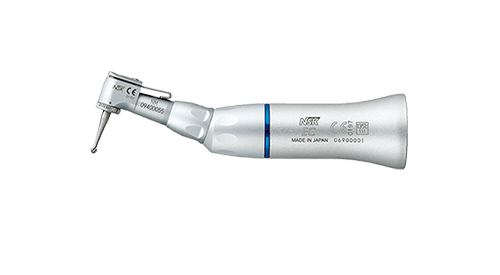

BB-EC1:1
Non-Optic
Model:BB-EC
Order Code:Y110159
Specifications
Gear Ratio
1:1 Direct Drive
For
CA Burs (Ø2.35)
Max Speed
40,000 min-1
Features
Ball Bearing / Latch Type
NBBW-EC1:1
Non-Optic
Model:NBBW-EC
Order Code:Y110160
Specifications
Gear Ratio
1:1 Direct Drive
For
CA Burs (Ø2.35)
Water Spray
With Water Nozzle
Max Speed
40,000 min-1
Features
Ball Bearing / Latch Type
NM-EC1:1
Non-Optic
Model:NM-EC
Order Code:Y110161
Specifications
Head
Miniature Head
Gear Ratio
1:1 Direct Drive
For
CA Burs (Ø2.35)
Max Speed
30,000 min-1
Features
Latch Type

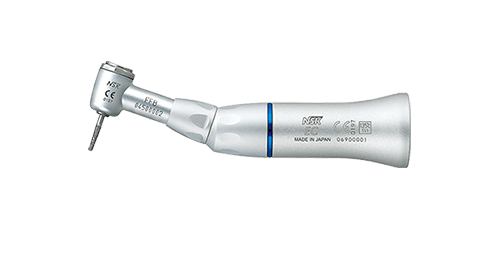

FFB-EC1:1
Non-Optic
Model:FFB-EC
Order Code:Y110162
Specifications
Gear Ratio
1:1 Direct Drive
For
FG Burs (Ø1.6)
Max Speed
40,000 min-1
Features
Clean Head System / Push Button Chuck
Endodontics Applications
MP-ER6464:1
Non-Optic
Model:MP-ER64
Order Code:Y110142
Specifications
Head
Miniature Head
Gear Ratio
64:1 Reduction
For
Engine Files / 360° Rotation
Max Speed
300 min-1
Features
Push Button Chuck
MPA-ER6464:1
Non-Optic
Model:MPA-ER64
Order Code:Y110144
Specifications
Head
Miniature Head
Gear Ratio
64:1 Reduction
For
Engine Files / 360° Rotation / Connection for Apex Locator (Long Shank Files)
Max Speed
300 min-1
Features
Push Button Chuck
MPAS-ER6464:1
Non-Optic
Model:MPAS-ER64
Order Code:Y110146
Specifications
Head
Miniature Head
Gear Ratio
64:1 Reduction
For
360° Rotation / Connection for Apex Locator (Long Shank Files)
Max Speed
300 min-1
Features
Push Button Chuck
NRS2-EC10:1
Non-Optic
Model:NRS2-EC
Order Code:Y110163
Specifications
Gear Ratio
10 :1 Reduction Head
For
CA Burs (Ø2.35)
Max Speed
3,000 min-1
Features
Clean Head System / Push Button Chuck
EX-ENDO 128
Model:EX-ENDO 128
Order Code:C592
Specifications
Gear Ratio
128:1 Reduction
For
Ni-Ti Files (Ø2.35) / 360° Rotation
Features
Exceptionally Small Head / Push Button Chuck

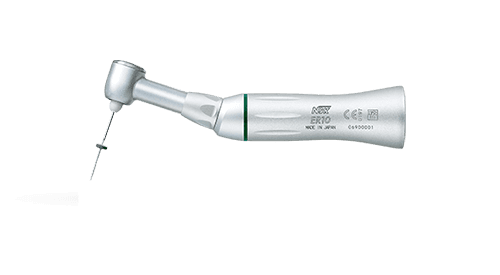

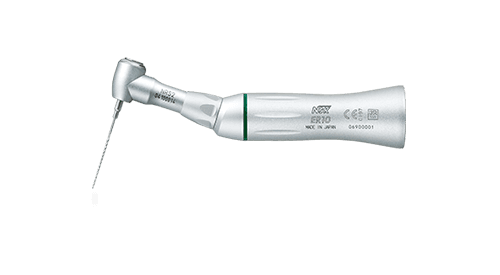

NRS2-ER1010:1
Non-Optic
Model:NRS2-ER10
Order Code:Y110143
Specifications
Gear Ratio
10:1 Reduction Handpiece & 10:1 Reduction Head
For
Engine Files / 360° Rotation
Max Speed
300 min-1
Features
Clean Head System / Push Button Chuck
TEP-ER1010:1
Non-Optic
Model:TEP-ER10
Order Code:Y110145
Specifications
Gear Ratio
10:1 Reduction
For
Hand Files / 60° Twist
Max Speed
4,000 min-1
Features
Push Button Chuck
Prophylaxis Applications
AR-EC (S)1:1
Non-Optic
Model:AR-EC (S)
Order Code:Y110164
Non-Optic
Model:AR-ECM (S)
Order Code:Y110179
Specifications
Gear Ratio
1:1 Direct Drive
For
Screw-in Cups and Brushes / 360° Rotation
Max Speed
5,000 min-1

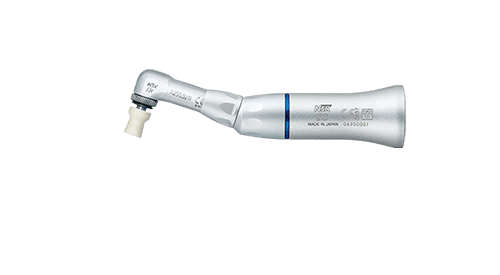

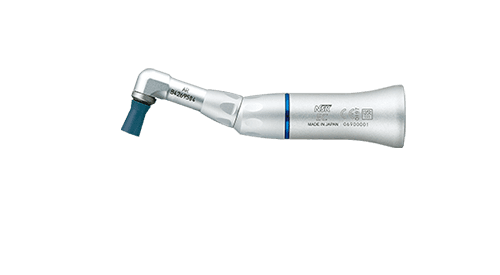

AR-EC (K)1:1
Non-Optic
Model:AR-EC (K)
Order Code:Y110165
Non-Optic
Model:AR-ECM (K)
Order Code:Y110180
Specifications
Gear Ratio
1:1 Direct Drive
For
Snap-on Cups / 360° Rotation
Max Speed
5,000 min-1

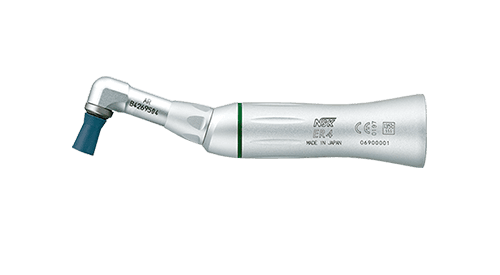

AR-ER4 (S4:1
Non-Optic
Model:AR-ER4 (S)
Order Code:Y110140
Specifications
Gear Ratio
4:1 Reduction
For
Screw-in Cups and Brushes / 360° Rotation
Max Speed
5,000 min-1

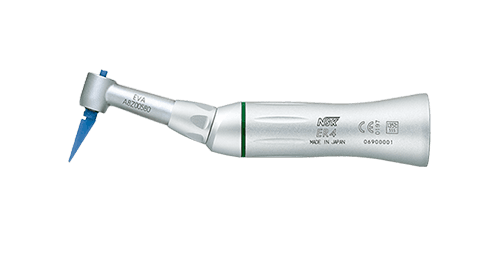

EVA-ER44:1
Non-Optic
Model:EVA-ER4
Order Code:Y110141
Specifications
Gear Ratio
4:1 Reduction
For
EVA Tips / Vertical Reciprocating (Stroke Length 1.4 mm)
Max Speed
10,000 min-1
Straight Handpieces

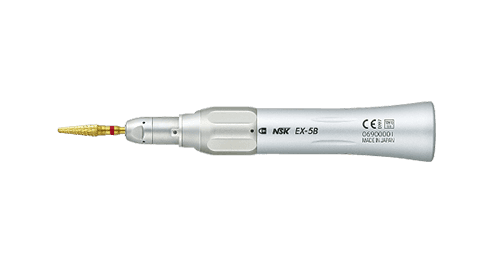

EX-5B4:1
Non-Optic
Model:EX-5B
Order Code:H262
Specifications
Gear Ratio
4:1 Reduction
For
HP burs (ø2.35), disposable prophy angle
Max Speed
10,000 min-1
Features
Clean Head System

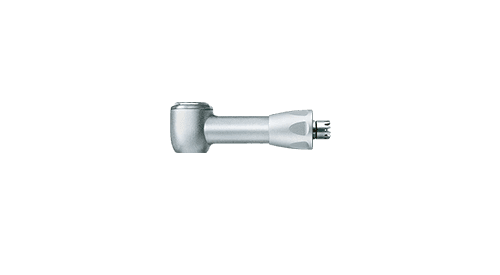

Heads for General Applications
Non-Optic

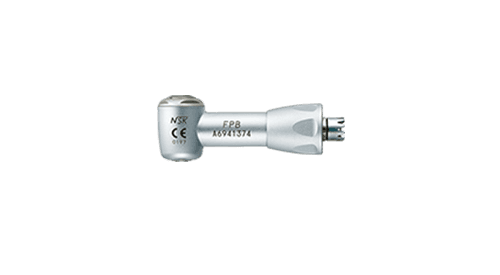

Model:FPB-Y
Order Code:C875
Specifications
For
CA Burs (Ø2.35)
Max Speed
40,000 min-1
Features
Clean Head System / Push Button Chuck / Ball Bearing
Non-Optic

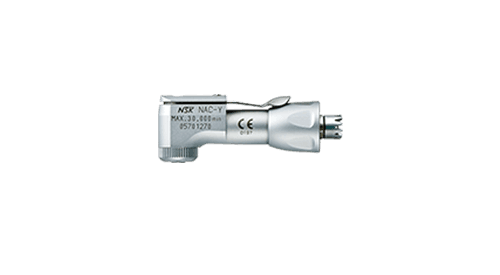

Model:NAC-Y
Order Code:C032002
Specifications
For
CA Burs (Ø2.35)
Max Speed
30,000 min-1
Features
Latch type

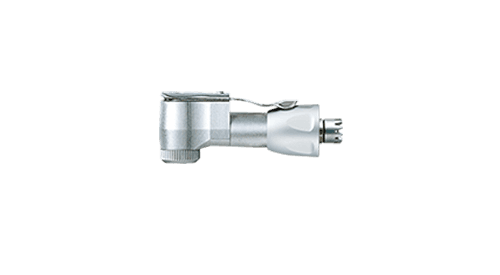

Non-Optic
Model:BB-Y
Order Code:C037
Specifications
For
CA Burs (Ø2.35)
Max Speed
40,000 min-1
Features
Ball Bearing / Latch Type
Non-Optic
Model:NBBW-Y
Order Code:C211
Specifications
For
CA Burs (Ø2.35)
Water Spray
With Water Nozzle
Max Speed
40,000 min-1
Features
Ball Bearing / Latch Type
Non-Optic

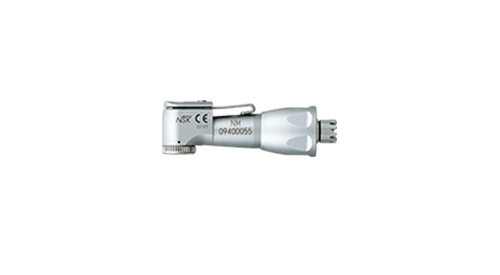

Model:NM-Y
Order Code:C247
Specifications
Head
Miniature Head
For
CA Burs (Ø2.35)
Max Speed
30,000 min-1
Features
Latch Type
Non-Optic

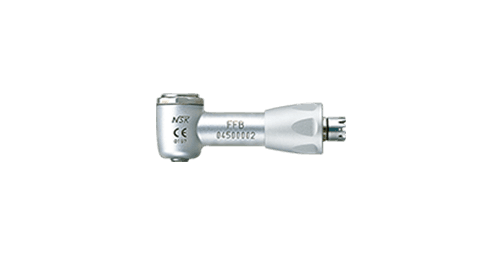

Model:FFB-Y
Order Code:C884
Specifications
For
FG Burs (Ø1.6)
Max Speed
40,000 min-1
Features
Clean Head System / Push Button Chuck
Heads for Endodontics Applications

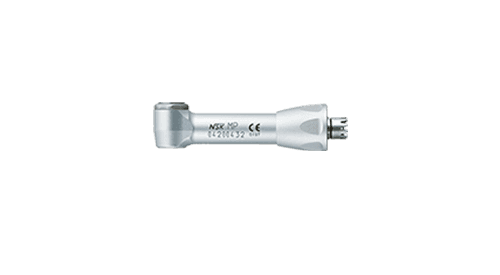

Non-Optic
Model:MP-Y
Order Code:C547
Specifications
Head
Miniature Head
Max Speed
20,000 min-1
Features
Push Button Chuck
Non-Optic

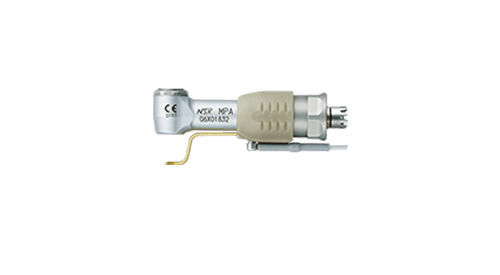

Model:MPA-Y
Order Code:C548
Specifications
Head
Miniature Head
Max Speed
20,000 min-1
Features
Connection for Apex Locator (For Long Shank) / Push Button Chuck

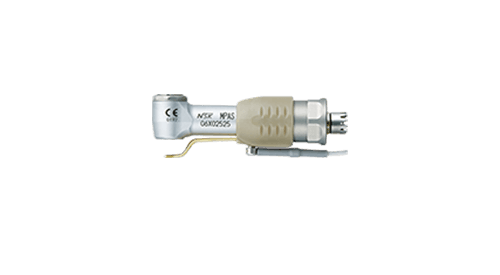

Non-Optic
Model:MPAS-Y
Order Code:C882
Specifications
Head
Miniature Head
Max Speed
20,000 min-1
Content
Connection for Apex Locator (For Short Shank) / Push Button Chuck
Non-Optic
Model:NML-Y
Order Code:C874
Specifications
Head
Miniature Head
For
Engine Files (Ø2.35) / 360° Rotation
Max Speed
30,000 min-1
Features
Latch Type

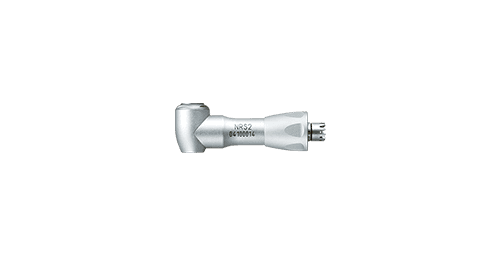

Non-Optic
Model:NRS2-Y
Order Code:C549
Specifications
Gear Ratio
10:1 Reduction
For
Engine Files (Ø2.35)
Max Speed
3,000 min-1
Features
Clean Head System / Push Button Chuck
Non-Optic
Model:TEP-Y
Order Code:C837001
Specifications
For
Hand Files / 60° Twist
Max Speed
4,000 min-1
Features
Push Button Chuck
Non-Optic
Model:TEQ-Y
Order Code:C849001
Specifications
For
Engine Files (Ø2.35) / 80°Twist
Max Speed
4,000 min-1
Features
Push Button Chuck
Non-Optic
Model:VM-Y
Order Code:C765
Specifications
For
Hand Files (Ø2.35) / Vertical Reciprocating (Stroke Length 0.4 mm)
Max Speed
4,000 min-1
Features
Push Button Chuck

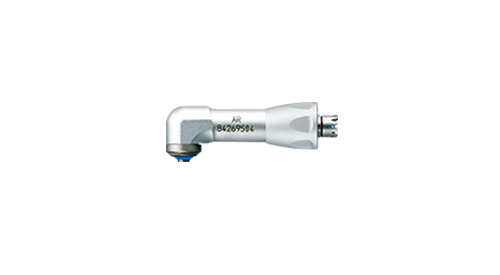

Heads for Prophylaxis Applications
Non-Optic

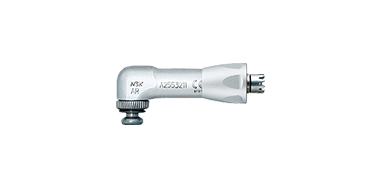

Model:AR-Y (K)
Order Code:C188
Specifications
For
Snap-on Cups
Max Speed
5,000 min-1
Non-Optic

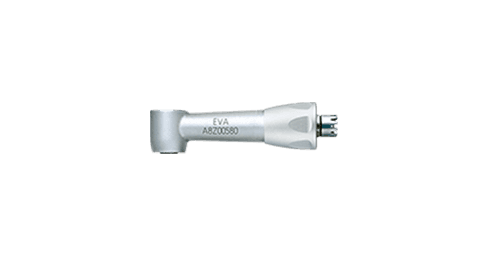

Model:EVA-Y
Order Code:C235
Specifications
For
EVA Tips / Vertical Reciprocating (Stroke Length 1.4 mm)
Max Speed
10,000 min-1
Non-Optic
Model:AR-Y (S)
Order Code:C187
Specifications
For
Screw-in Cups and Brushes
Max Speed
5,000 min-1

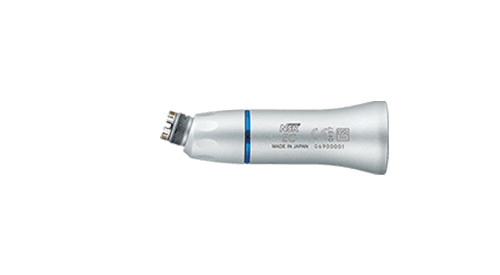

Shanks
Model:EC-30
Order Code:C100008
Model:EC-30M
Order Code:C100007
Specifications
Gear Ratio
1:1 Direct Drive
Model:ER4
Order Code:C634
Model:ER4M
Order Code:C634002
Specifications
Gear Ratio
4:1 Reduction
Model:ER10
Order Code:C635
Model:ER10M
Order Code:C635002
Specifications
Gear Ratio
10:1 Reduction

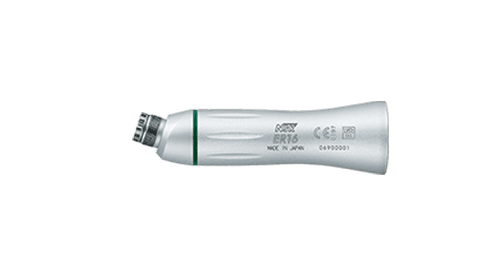

Model:ER16
Order Code:C636
Model:ER16M
Order Code:C636002
Specifications
Gear Ratio
16:1 Reduction

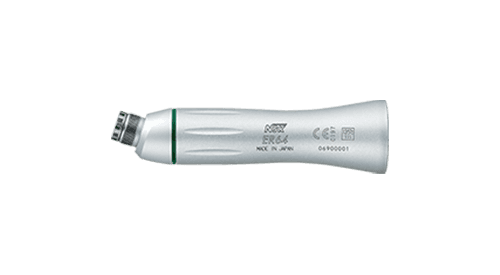

Model:ER64
Order Code:C637
Model:ER64M
Order Code:C637002
Specifications
Gear Ratio
64:1 Reduction
