NSK’s all new “NLZ E” can help any user of air driven high speed turbine handpieces convert to electric and enjoy the full benefits of this smart system.
Bringing big changes in a compact format. This portable all-new micromotor system used with contra-angles for general and endodontic (rotary & reciprocating) applications, comes with additional safety features and installation versatility (portable or semi built-in).
Electric micromotors
- high speed rotation and torque
- flexible speed variation
- no maintenance
- for all clinical applications
- E-type fitting connects with all contra-angle handpieces (NSK, KaVo®, Sirona®, W&H®, Bien-Air®)
- Optic and non-optic
- Internal spray
Technology & Function
POWERFUL
The conventional magnet rotor has been improved offering more powerful rotation while maximising the same amount of space.
EFFICIENT
The water and air lines are now integrated within the motor, offering a lighter motor in addition to more efficient power/torque.
LESS HEAT
NLZ E offers less heat without compromising power, by employing a simple non-layered coil, shortening the pathway for heat generation.
SIMPLIFIED WATER LINE CONFIGURATION
The NLZ E uses a simple straight water line design to reduce water blockages in the rear of the motor.
CONTAMINANTS ARE STOPPED BY A MICROFILTER
A mesh fitted water filter (0.3mm diameter) within the water line at the back of the motor catches debris and foreign particles to prevent blockages.
ENDO TORQUE CALIBRATION FUNCTION
When performing the “Contra-Check Function” this also enables torque calibration. This function measures the no-load value and corrects the torque accordingly, resulting in enhanced safety within endodontic treatment.
*This function cannot completely compensate the difference of the motor and contra-angles.
Ti-Max Z Contra-angle

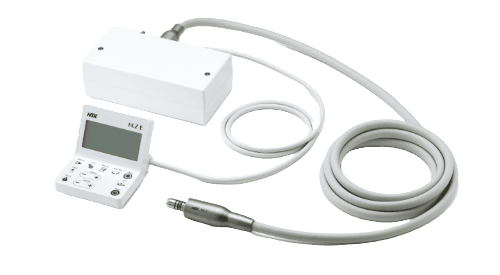

NLZ E
(Model : NLZ E S230)
Specifications Unit
Specifications (Motor)
*The "Reciprocating Endo Mode" can be operated only
with the NLZ Endo Contra Angle handpiece and WAVE ONE® file.
