    Multi Pad

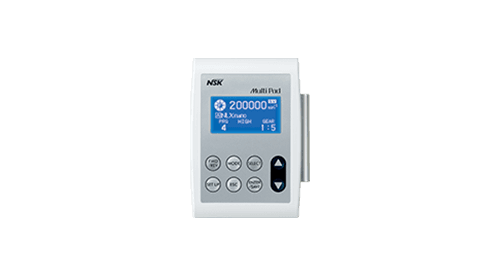

    Multi Pad - Multi-Control Panel for Built-in System

    Multi Pad - Multi-Control Panel for Built-in System

    NSK’s Multi Pad uniquely enables control of the NLX nano and NLX plus electric micromotors and the Varios 170 ultrasonic scaler in one system. When partnered with Multi Pad, the NLX nano reaches speeds of 1,000 - 40,000 min-1 and delivers a powerful 3.4Ncm torque, whilst the NLX plus additionally offers 3 user-friendly endo modes; auto-reverse on, auto-stop and auto-reverse off. NSK’s Multi Pad can also be used to control all functions of the Varios 170 ultrasonic scaler.

    Features

    Features

    - User friendly LCD display and interface to select settings.
    - Visual identification on the display is possible even during operation of the handpiece.
    - Up to 8 programs (motor only).
    - Supports 5 languages (English, Espanol, Italiano, Francais and Deutsch).

    Multi Pad

    Model:Multi Pad
    Order Code:Y1001845
    Model:Multi Pad Auto-Select
    Order Code:Y1001846

    Content

    Multi Pad Unit / Angle Plate (Mounting Bracket) / Screws

    Specifications

    Input Voltage
    DC + 12 V
    Input Connect
    100 mA
    Max. Output Power
    1.2 W
    Dimensions
    W 95 x D 138 x H 31 mm
