    Integrated System

    A wide choice of integrated micromotors and ultrasonic scalers designed for outstanding performance. Combine this with the extensive range of NSK contra-angle handpieces and tips to cover all aspects of dental procedures to the highest standards.

    Evolution, Transformation & Improvement
    Equip your dental unit with the latest leading-edge technologies. You will benefit from the latest control systems and the highest-performance instruments available to the market. Your supplier can easily integrate all of these NSK products in to your new or existing dental equipment.
    All of these products have been designed to give you everything you may need to treat your patients with confidence.

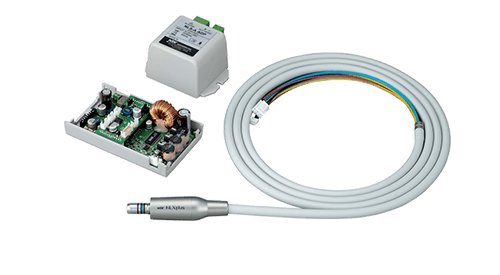

    The Integrated System
    - Electric Micromotor Integrated System (NLX BF) and Multi Function
    - Ultrasonic Scaler (Varios 170) can be controlled with the system.

    Performance

    Micromotors solutions
    • Power
    • LED illumination
    • Miniaturization
    • Silence
    • No vibration
    • Low power consumption
    • Endo function
    		 Ultrasonic scalers solutions
    • Power output
    • Double LED lighting
    • Miniaturization of PCB
    • Tactile feel
    • Most ergonomic handpiece design
    NLX nano NLX plus Ti-Max M40 LED Ti-Max NBX
    Length (mm) 45 51 67 80.8
    Weight (gr) 64 72 98 85
    Speed (RPM) 1000 to 40 000 100 to 40 000 60 to 40 000 60 to 40 000

    NLX nano

    Electric Micromotor Integrated System (Brushless) - Specifications

    Speed
    1,000-40,000 min-1
    Torque
    3.4 Ncm

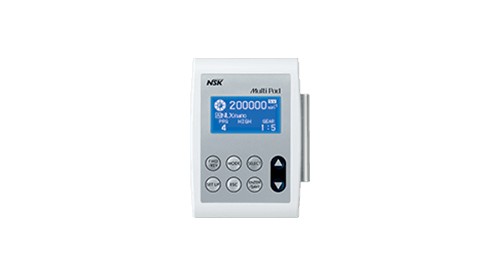

    Model:Multi Pad
    Order Code:Y1001845
    Model:Multi Pad Auto-Select
    Order Code:Y1001846

    Specifications

    Input Voltage
    DC + 12 V
    Input Connect
    100 mA
    Max. Output Power
    1.2 W
    Dimensions
    W 95 x D 138 x H 31 mm

    Content

    Multi Pad Unit / Angle Plate (Mounting Bracket) / Screws

    Model:NLX BF
    Order Code:Y1002122

    Specifications

    Dimensions with Case
    W 115 x D 68.5 x H 40 mm

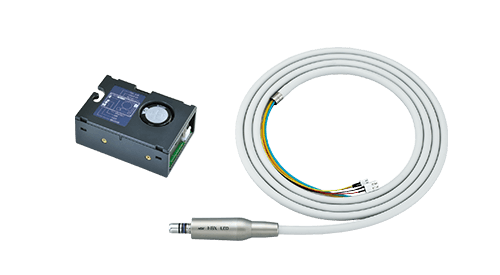

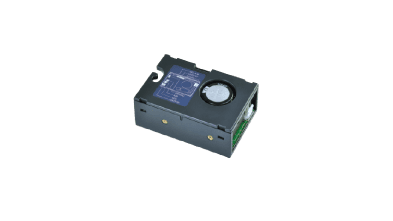

    Power module with lamp and air function for integrated system

    Model:NLS ADP
    Order Code:U1020050

    Specifications

    Dimensions
    W 60.2 x D 81.4 x H 45.2 mm

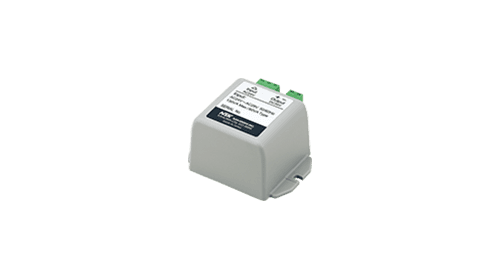

    24 Vac - 32 Vdc converter for integrated system

    Model:NLS SEL
    Order Code:Y1001808

    Specifications

    Dimensions
    W 62 x D 50 x H 28.6 mm

    Selector module for integrated system

    Optic

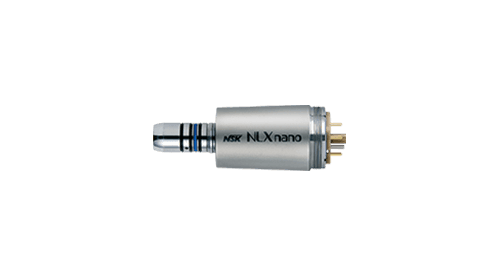

    Model:NLX nano
    Order Code:E1044051

    Content

    NLX nano Micromotor (cord not included)

    Features

    Solid Titanium Body / Autoclavable up to 135°C

    Optic
    Model:nano CDB
    Order Code:E1040062

    Content

    NLX plus micromotor cord for integrated system (2.2 m)

    NLX plus

    Electric Micromotor Integrated System (Brushless) - Specifications

    Speed
    100-40,000 min-1
    Torque
    4.0 Ncm

    Model:Multi Pad
    Order Code:Y1001845
    Model:Multi Pad Auto-Select
    Order Code:Y1001846

    Specifications

    Input Voltage
    DC + 12 V
    Input Connect
    100 mA
    Max. Output Power
    1.2 W
    Dimensions
    W 95 x D 138 x H 31 mm

    Content

    Multi Pad Unit / Angle Plate (Mounting Bracket) / Screws

    Model:NLX BF
    Order Code:Y1002122

    Specifications

    Dimensions with Case
    W 115 x D 68.5 x H 40 mm
    Power module with lamp and air function for integrated system

    Model:NLS ADP
    Order Code:U1020050
    24 Vac - 32 Vdc converter for integrated system

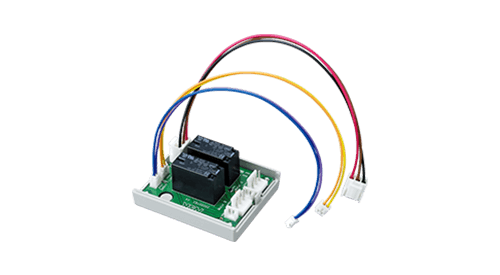

    Model:NLS SEL
    Order Code:Y1001808

    Specifications

    Dimensions
    W 62 x D 50 x H 28.6 mm
    Selector module for integrated system

    Optic

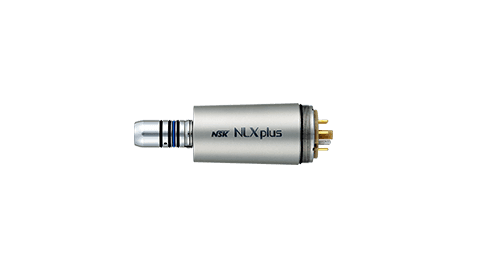

    Model:NLX plus
    Order Code:E1040051

    Content

    NLX plus Micromotor (cord not included)

    Features

    Solid Titanium Body / Autoclavable up to 135°C

    Optic
    Model:plus CD
    Order Code:E1040062

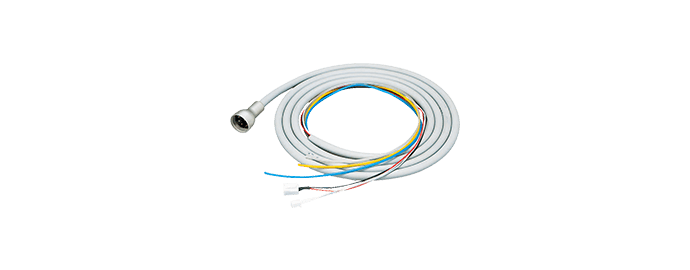

    NLX plus micromotor cord for integrated system (2.2 m)

    Model:Multi Pad
    Order Code:Y1001845
    Model:Multi Pad Auto-Select
    Order Code:Y1001846

    Specifications

    Input Voltage
    DC + 12 V
    Input Connect
    100 mA
    Max. Output Power
    1.2 W
    Dimensions
    W 95 x D 138 x H 31 mm

    Content

    Multi Pad Unit / Angle Plate (Mounting Bracket) / Screws

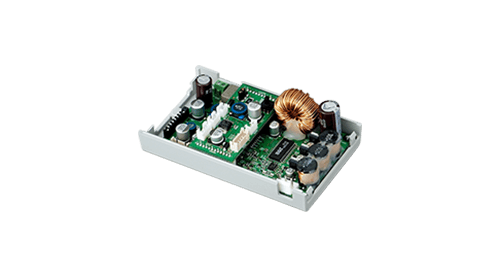

    Model:NLX BF
    Order Code:Y1002122

    Specifications

    Dimensions with Case
    W 115 x D 68.5 x H 40 mm

    Power module with lamp and air function for integrated system

    Model:NLS ADP
    Order Code:U1020050

    24 Vac - 32 Vdc converter for integrated system

    Model:NLS SEL
    Order Code:Y1001808

    Specifications

    Dimensions
    W 62 x D 50 x H 28.6 mm

    Selector module for integrated system

    Optic
    Model:NLX plus
    Order Code:E1040051

    Content

    NLX plus Micromotor (cord not included)

    Features

    Solid Titanium Body / Autoclavable up to 135°C

    Optic
    Model:plus CD
    Order Code:E1040062

    NLX plus micromotor cord for integrated system (2.2 m)

    NBX / iMD

    Electric Micromotor Integrated System (Brush) - Specifications

    Speed
    60-40,000 min-1
    Torque
    4.0 Ncm
    Please contact NSK dealer for installation inquiry

    Model:Multi Pad
    Order Code:Y1001845
    Model:Multi Pad Auto-Select
    Order Code:Y1001846

    Specifications

    Input Voltage
    DC + 12 V
    Input Connect
    100 mA
    Max. Output Power
    1.2 W
    Dimensions
    W 95 x D 138 x H 31 mm

    Content

    Multi Pad Unit / Angle Plate (Mounting Bracket) / Screws

    Model:iMD BS
    Order Code:Y1002845

    Specifications

    Dimensions
    W 86 x D 57 x H 33 mm

    Power module for integrated system

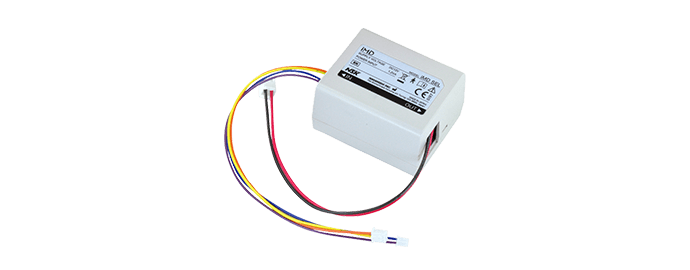

    Model:iMD SEL
    Order Code:Y1002848

    Specifications

    Dimensions
    W 68.5 x D 56.5 x H 38.5 mm
    Selector module for integrated system

    Optic

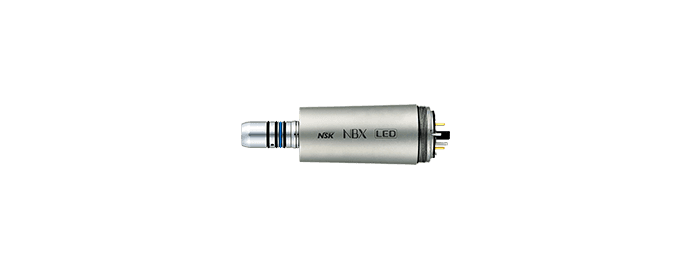

    Model:NBX
    Order Code:E1059051

    Content

    Micromotor (cord not included)

    Features

    Solid Titanium Body

    Optic

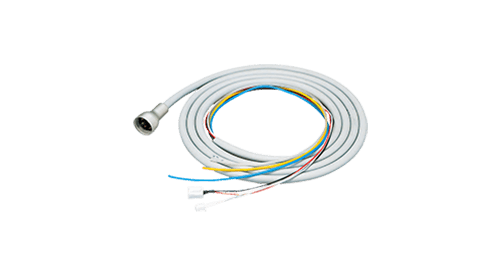

    Model:NBX CDB
    Order Code:E1059061
    NBX micromotor cord for integrated system

    Model:Multi Pad
    Order Code:Y1001845
    Model:Multi Pad Auto-Select
    Order Code:Y1001846

    Specifications

    Input Voltage
    DC + 12 V
    Input Connect
    100 mA
    Max. Output Power
    1.2 W
    Dimensions
    W 95 x D 138 x H 31 mm

    Content

    Multi Pad Unit / Angle Plate (Mounting Bracket) / Screws

    Model:iMD BS
    Order Code:Y1002845

    Specifications

    Dimensions
    W 86 x D 57 x H 33 mm

    Power module for integrated system

    Model:iMD SEL
    Order Code:Y1002848

    Specifications

    Dimensions
    W 68.5 x D 56.5 x H 38.5 mm

    Selector module for integrated system

    Optic
    Model:NBX
    Order Code:E1059051

    Content

    Micromotor (cord not included)

    Features

    Solid Titanium Body

    Optic
    Model:NBX CDB
    Order Code:E1059061

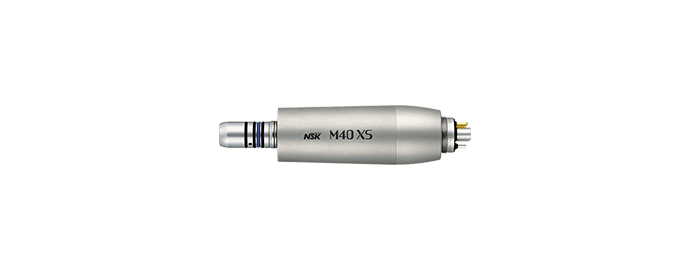

    M40 XS

    Optic
    Model:M40 XS
    Order Code:E1135051
    Non-Optic
    Model:M40N XS
    Order Code:E1136051

    Features

    Made Shorter and Lighter for Perfect Balance / Advantages of using - LED light / Ergonomic Shape
